| import numpy as np
import open3d
from open3d import registration_ransac_based_on_feature_matching as RANSAC
from open3d import registration_icp as ICP
from open3d import compute_fpfh_feature as FPFH
from open3d import get_information_matrix_from_point_clouds as GET_GTG
def register(pcd1, pcd2, size):
kdt_n = open3d.KDTreeSearchParamHybrid(radius=size, max_nn=50)
kdt_f = open3d.KDTreeSearchParamHybrid(radius=size * 10, max_nn=50)
pcd1_d = open3d.voxel_down_sample(pcd1, size)
pcd2_d = open3d.voxel_down_sample(pcd2, size)
open3d.estimate_normals(pcd1_d, kdt_n)
open3d.estimate_normals(pcd2_d, kdt_n)
pcd1_f = FPFH(pcd1_d, kdt_f)
pcd2_f = FPFH(pcd2_d, kdt_f)
checker = [open3d.CorrespondenceCheckerBasedOnEdgeLength(0.9),
open3d.CorrespondenceCheckerBasedOnDistance(size * 2)]
est_ptp = open3d.TransformationEstimationPointToPoint()
est_ptpln = open3d.TransformationEstimationPointToPlane()
criteria = open3d.RANSACConvergenceCriteria(max_iteration=400000,
max_validation=500)
result1 = RANSAC(pcd1_d, pcd2_d,
pcd1_f, pcd2_f,
max_correspondence_distance=size * 2,
estimation_method=est_ptp,
ransac_n=4,
checkers=checker,
criteria=criteria)
result2 = ICP(pcd1, pcd2, size, result1.transformation, est_ptpln)
return result2.transformation
def merge(pcds):
all_points = []
for pcd in pcds:
all_points.append(np.asarray(pcd.points))
merged_pcd = open3d.PointCloud()
merged_pcd.points = open3d.Vector3dVector(np.vstack(all_points))
return merged_pcd
def add_color_normal(pcd): # in-place coloring and adding normal
pcd.paint_uniform_color(np.random.rand(3))
size = np.abs((pcd.get_max_bound() - pcd.get_min_bound())).max() / 30
kdt_n = open3d.KDTreeSearchParamHybrid(radius=size, max_nn=50)
open3d.estimate_normals(pcd, kdt_n)
def load_pcds(pcd_files):
pcds = []
for f in pcd_files:
pcd = open3d.read_point_cloud(f)
add_color_normal(pcd)
pcds.append(pcd)
return pcds
def align_pcds(pcds, size):
pose_graph = open3d.PoseGraph()
accum_pose = np.identity(4)
pose_graph.nodes.append(open3d.PoseGraphNode(accum_pose))
n_pcds = len(pcds)
for source_id in range(n_pcds):
for target_id in range(source_id + 1, n_pcds):
source = pcds[source_id]
target = pcds[target_id]
trans = register(source, target, size)
GTG_mat = GET_GTG(source, target, size, trans)
if target_id == source_id + 1:
accum_pose = np.matmul(trans, accum_pose)
pose_graph.nodes.append(open3d.PoseGraphNode(np.linalg.inv(accum_pose)))
pose_graph.edges.append(open3d.PoseGraphEdge(source_id,
target_id,
trans,
GTG_mat,
uncertain=True))
solver = open3d.GlobalOptimizationLevenbergMarquardt()
criteria = open3d.GlobalOptimizationConvergenceCriteria()
option = open3d.GlobalOptimizationOption(
max_correspondence_distance=size / 10,
edge_prune_threshold=size / 10,
reference_node=0)
open3d.global_optimization(pose_graph,
method=solver,
criteria=criteria,
option=option)
for pcd_id in range(n_pcds):
trans = pose_graph.nodes[pcd_id].pose
pcds[pcd_id].transform(trans)
return pcds
def main():
pcds = load_pcds(["data/test/bun270.ply",
"data/test/bun315.ply",
"data/test/chin.ply",
"data/test/bun000.ply",
"data/test/bun045.ply",
"data/test/bun090.ply",
"data/test/bun180.ply"])
open3d.draw_geometries(pcds, "input pcds")
size = np.abs((pcds[0].get_max_bound() - pcds[0].get_min_bound())).max() / 30
pcd_aligned = align_pcds(pcds, size)
open3d.draw_geometries(pcd_aligned, "aligned")
pcd_merge = merge(pcd_aligned)
add_color_normal(pcd_merge)

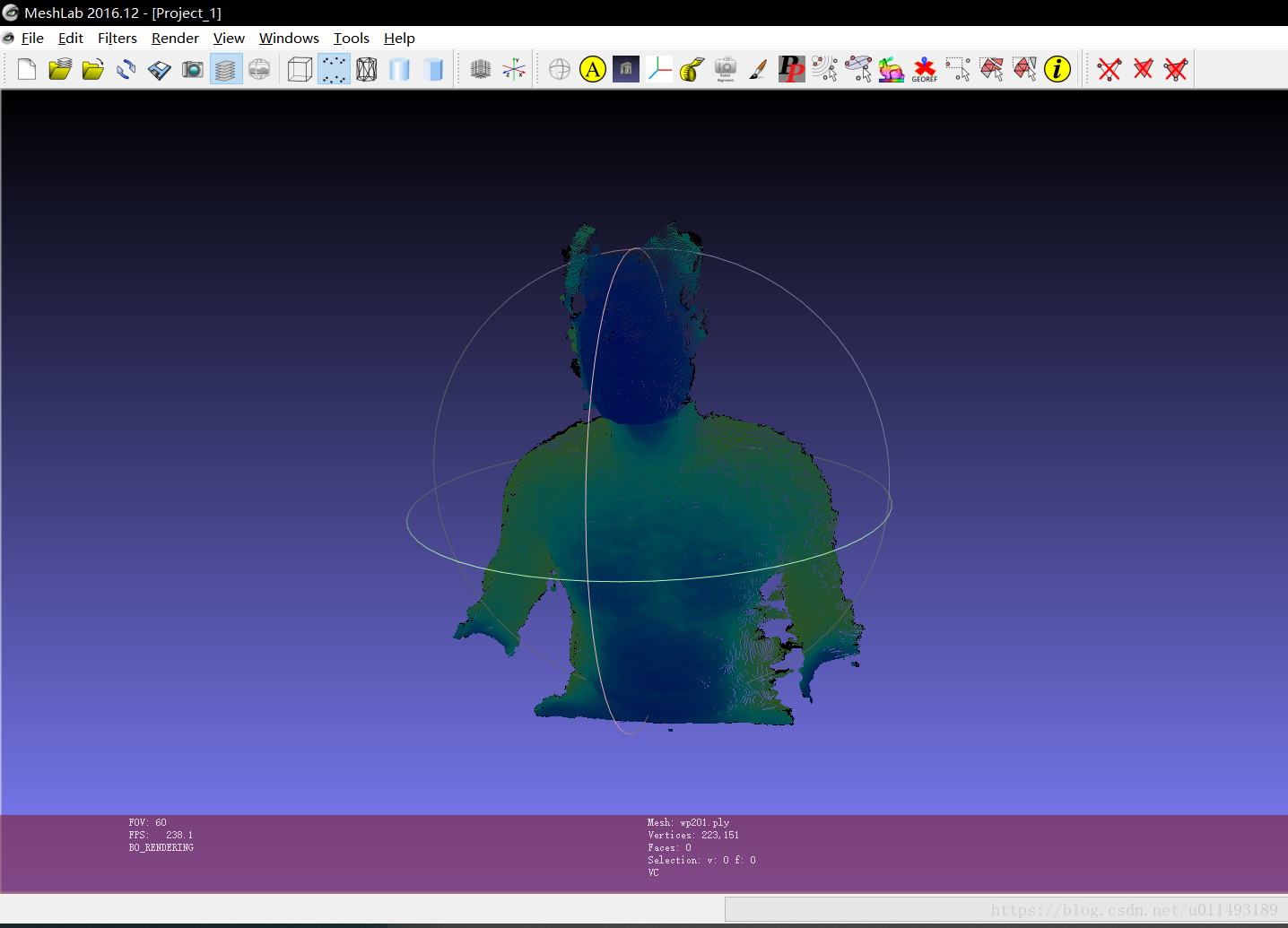

open3d.draw_geometries([pcd_merge], "merged")
if __name__ == '__main__':
main()
|
